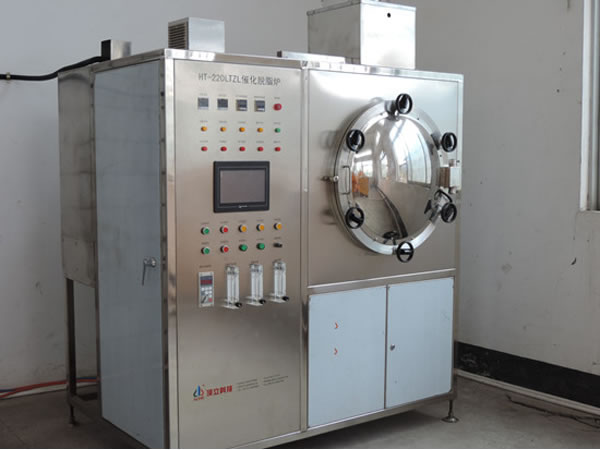

Furnace for catalytic degreasing

Appointment furnaces for catalytic degreasing


The furnace is designed for catalytic degreasing articles from powdered metal injection molding (MIM).

Technical features


1.Pech degreaser made from completely 316L stainless steel with good corrosion resistance and good views.
2.Osobaya muffle design, ventilation mode, a uniform gas flow and a good effect of degreasing.
3.Osoby method of flue gas treatment, effectively removes additional nitric acid (HNO₃) and exhaust gases.
4.Sensornoe screen control, PLC centralized control, simple operation, high reliability.
5. Furnace for catalytic degreasing has an alarm function with pressure overload and overheating of the furnace, automatic protection against mechanical pressure, blocking function, and other functions, high security
6.Imeet remote control functions, diagnostics and fault alarm software update.

Personal accessories


1. The body of the furnace for degreasing: Fully stainless steel 316L
2. The oven chamber: high-quality ceramic felts
3. Heater: Ni + Cr alloy
4. Pneumatic control: volume flow meter / manual / automatic valve, imported / Chinese brand
5. HMI (interface): analog screen / touch screen / industrial computer
6. PLC furnaces for catalytic degreasing: OMRON / SIEMENS
7. Temperature Measurement: Platinum resistor
8. Temperature Controller: SHIMADEN / EUROTHERM
9. Electrical components: CHINT / SCHNEIDER / SIEMENS

The models and parameters of the furnace for degreasing



options Models	CD-454267
working area size D × H (mm)	450 × 420 × 670
The effective volume (L)	220
Max. Temperature (℃)	150
Heating power (kW)	9
Wednesday catalyst	HNO3
Process gas	N2
These data are calculated in accordance with the parameters of stainless steel products (MIM) sintering. They may vary according to the technological requirements of the customer. They are not standards for the reception, detailed specifications will be confirmed in the technical proposal or contract.
