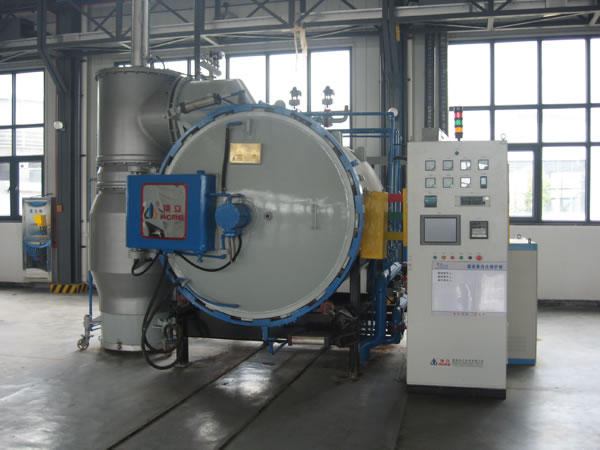

Vacuum sintering furnace

appointment


Vacuum sintering furnace is designed for sintering products of tungsten alloys, magnetic materials, alloys of high specific gravities, molybdenum alloys, tungsten carbide and others.

Technical features


1.Osobaya chamber design and ideal location of heaters to get a good temperature uniformity.
2. The vacuum sintering furnace is a function of slow evacuation, vacuum sintering, pressure sintering at low sintering at partial pressure and so on.
3. Use advanced structure and insulating materials with good insulation and a lower heat absorption, saves energy over 20% as compared with the conventional structure.
4.Sensornoe screen control, PLC centralized control, simple operation, high reliability.
5. The vacuum sintering furnace has an alarm function with pressure overload and overheated in the furnace, the mechanical protection of the automatic pressure lock function, and other functions, high security
6.Imeet remote control functions, diagnostics and fault alarm software update.

configuration Options


1. The oven doors: Hinged door / lock manual / automatic ring seal.
2.Korpus furnace: Fully Carbon Steel / interior: stainless steel / stainless steel fully
3. The furnace chamber vacuum sintering: Soft carbon felt + hard felt composite / full hard composite felt
4. Heater: HIP-pressed graphite / stamping of high purity graphite, high strength and high density
5.Pnevmaticheskoe control: volume flow meter / mass flow meter, manual / automatic valve, imported / Chinese brand
6. The vacuum pump and vacuum: Imported / Chinese brand
7. Trolley vacuum sintering furnace: roller loader / forklift
8. HMI (interface): analog screen / touch screen / industrial computer
9. PLC: OMRON / SIEMENS
10. A temperature controller: SHIMADEN / EUROTHERM
11. Thermocouple: C type (with a cover made of tungsten / molybdenum / ceramics)
12. Recorder: a paperless / paper; imported / Chinese brand
13. Electrical components: CHINT / SCHNEIDER / SIEMENS

The models and parameters for oven vacuum sintering



options Models	VS-020 203	VS-030 306	VS-040 408	VS-050 513
The size of the working area W × H × D (mm)	200 × 200 × 300	300 × 300 × 600	400 × 400 × 800	500 × 500 × 1300
loading weight (excluding volume) kg	thirty	150	250	500
Max. Temperature (℃)	1550	1550	1550	1550
Temperature uniformity (℃)	± 3	± 3	± 3	± 5
Heating power (kW)	45	75	105	210
Ultimate vacuum (Pa)	1	1	1	1
The rate of pressure rise (Pa / h)	0.67	0.67	0.67	0.67
Working atmosphere	Ar / N2	Ar / N2	Ar / N2	Ar / N2
These figures may vary according to the technological requirements of the customer. They are not standards for the reception, detailed specifications will be confirmed in the technical proposal or contract.
