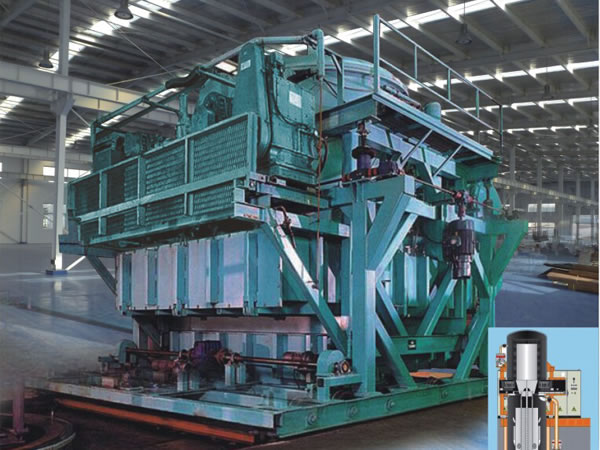

Vertical two-chamber vacuum furnace for hardening products in oil-cooled gas

appointment


Vertical two-chamber vacuum furnace designed to harden in oil products alloyed structural steel, high speed steel, high-strength steel, M300 steel, in particular for the hardening under vacuum rods, panels, long shafts, aircraft landing gear or similar components easily deforming in effective termoobrabotke.Otlichnoe cooling minimizes liner dlinnyhs parts, improving the quality properties of the structure.

Technical features vertical vacuum furnace for tempering

1.Vertikalnaya two-part design, the customer can choose a vertical movable structure and location in accordance with their requirements.
2.Modulnaya optimized furnace chamber design, with a good temperature uniformity.
3.Regulirovka cages speed linear motion in the "slow-fast-slow." Stability, reliability and shorter travel time.
4.Produvanie shielding gas during the quenching oil medium to minimize evaporation acceleration and oil vapor cooling
5. Vertical dual-chamber vacuum furnace equipped with a large capacity tank for oil, hot oil is cooled by an external heat exchanger and circulation pump for better cooling.
6.Two oil cooling type: paddle mixing and spray nozzles are used for different sizes of parts. Minimally long lead items
7.Bolshaya cage and high efficiency, especially for hardening under vacuum landing gear oil brand staliM300 and other long items.

Personal accessories


1.Vertikalnaya two-chamber design: integral type / mobile heating camera / mobile tank for oil.
2.B churning: mixing paddle / injector / mixing paddle and forsunki
3.Kamera vertical vacuum furnace for tempering: graphite heaters and reflective screens graphite felt composite heat insulation
4. From heaters nikelhromovyh alloys and stainless steel reflective screens for insulation
5.Iz molybdenum heaters and reflective metal screens for insulation
6. The vacuum pump and vacuum: Imported / Chinese high-quality marka
7. Vacuum: a high level of vacuum / average vakuuma
8. PLC: Siemens / Omron / Mitsubishi
9. The temperature controller is a vertical two-chamber vacuum furnace: Shimaden / Eurotherm / Honeywell
10. Thermocouple: K type / N type / K type / S type
11. Recorder: a paperless / bumazhnyy
12. HMI (interface): analog screen / touch screen / industrial computer
13. Electrical components: the Chinese brand quality / Schneider / Siemens

The models and parameters of a vertical vacuum furnace for tempering



Models and Options	VVOQ-0812D	VVOQ-1015D	VVOQ-1218D	VVOQ-1520D	VVOQ-1825D
working area Dimensions W × H (mm)	Φ800 × 1200	Φ1000 × 1500	Φ1200 × 1800	Φ1500 × 2500	Φ1800 × 3000
Cages Weight (kg)	600	1000	1200	2000	2500
Heating power (kW)	240	330	450	570	750
Max. Temperature (℃)	1050	1050	1050	1050	1050
	1350	1350	1350	1350	1350
Temperature uniformity (℃)	± 5	± 5	± 5	± 5	± 5
Vacuum (Pa)	4 × 10-1	4 × 10-1	4 × 10-1	4 × 10-1	4 × 10-1
	4 × 10-3 / 6 × 10-4	4 × 10-3 / 6 × 10-4	4 × 10-3 / 6 × 10-4	4 × 10-3 / 6 × 10-4	4 × 10-3 / 6 × 10-4
The rate of pressure rise (Pa / h)	≤0.26 ≤0.65	≤0.26 ≤0.65	≤0.26 ≤0.65	≤0.26 ≤0.65	≤0.26 ≤0.65
Time travel cages (S)	≤20	≤36	≤45	≤60	≤72
Oil Tank Capacity (L)	5000	98000	11000	180000	240000
The cooling gas is 99.995%	N2 / Ar	N2 / Ar	N2 / Ar	N2 / Ar	N2 / Ar
The pressure of the cooling gas (bar)	2	2	2	2	2
