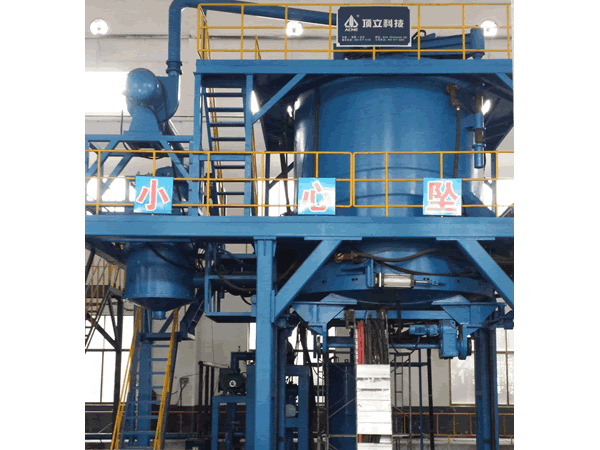

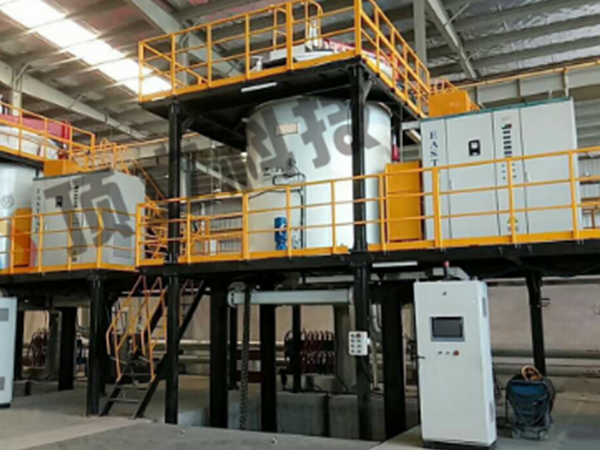

Vertical vacuum furnace pyrolysis

appointment

Vertical vacuum pyrolysis furnace designed for pyrolysis of carbon-carbon, carbon-ceramic composite materials in vacuum.

Technical features

1. With high-temperature pyrolysis sealed chamber, with high protection against contamination, easy to clean.
2. multiple temperature control zones can be designed for a vertical pyrolysis furnace large (upper and lower) to increase the temperature uniformity
3. With the possibility of an option of fast external circulation cooling system, reducing the time of each cycle.
4. With the ability to multi-option flue gas treatment system, removal of tar, ash, dust, particulate matter and exhaust gases generated during the carbonization process.

Options accessories vertical vacuum pyrolysis furnace

1. The oven doors: hydraulic lifting / mechanical lifting, folding door / Sliding door; manual closing / automatic ring seal.
2. The body of the furnace: all carbon steel / stainless steel completely. steel
3. The oven chamber: refractory brick + ceramic thread
4. A heater muffle graphite / carbon-carbon composite materials
5.Pnevmaticheskaya vertical pyrolysis furnace system: volumetric flow meter / mass flow meter, manual / automatic valve, imported / Chinese brand
6. The vacuum pump and vacuum: Imported / Chinese brand
7. HMI (interface): analog screen / touch screen
8. PLC: OMRON / SIEMENS
9. The temperature controller: SHIMADEN / EUROTHERM
10.Termopara: W-Re type / S type / R type
11. Electrical components: CHINT / SCHNEIDER / SIEMENS

The models and parameters of vertical vacuum pyrolysis furnace

options Models	VVC-0508	VVC-1015	VVC-1520
working area size D × H (mm)	Φ500 × 800	Φ1000 × 1500	Φ1500 × 2000
Load (kg)	150	1000	3000
Max. Temperature (℃)	1600	1600	1600
Temperature uniformity (℃)	± 5	± 7.5	± 10
Heating power (kW)	90	300	540
Ultimate vacuum (Pa)	thirty	thirty	thirty
The rate of increase of pressure (Pa / h)	0.67	0.67	0.67
The above specifications are subject to change according to the technological requirements of the customer, they are not the standards for the reception, detailed specifications will be confirmed in the technical proposal or contract.
