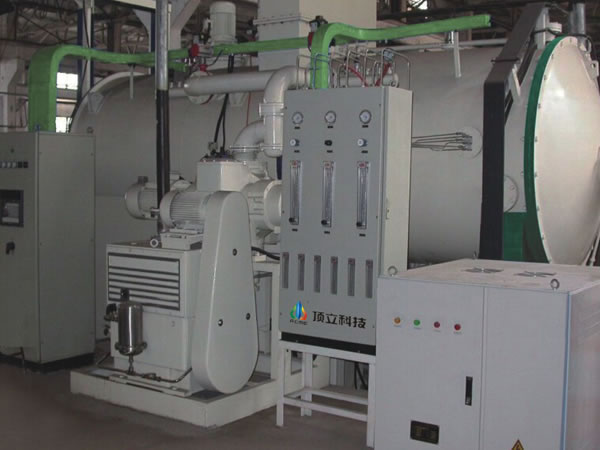

Horizontal two-chamber vacuum furnace karborizatsii

appointment


Two-chamber vacuum furnace to carbonize intended for carbonization and hardening products from 20CrMnTi, 12Cr2Ni4A, 12Cr2Ni3A structural steel, high alloy steel, 1Cr13 stainless steel, tool steel, and quenching and tempering articles such as gears, bushings parts, precision bearings, oil injectors pumps, precision parts.

 Technical characteristics of the vacuum carburizing furnace


1. Horizontal two-part design, one chamber for carbonization, the other
quenching chamber, quenching medium in accordance with demand.
2. In the heating chamber are arranged nozzles for the injection medium carbonization to maintain the uniformity atomosfery.
3.Special carbonization technology and precise control of carbonation parameters provide optimal distribution of concentration and the minimum error in depth.
4.Karbonizatsiya carried out at a temperature of 1050 degrees, which significantly reduces the carbonation period.
5.Telezhka two-chamber vacuum furnace for carbonization is moved in the "slow-fast-slow", stability, reliability and travel time short.
6. Use of pulsed gas control improves the carbonation of the blind holes
7.Ekologicheski clean, safe and efficient equipment of the XXI century at the best price.

Personal accessories


1.Tip vacuum carburizing furnace: Horizontal two-part / two-chamber vertical
2.B hardening: Oil hardening vacuum / vacuum gas quenching
3.Vakuumny pump and vacuum: Imported / Chinese brand quality
4.PLC: Siemens / Omron / Mitsubishi
Temperature 5.Kontroller: Shimaden / Eurotherm / Honeywell
6.Termopara: K type / N type / S type
7.Registrator two-chamber vacuum furnace for carbonization: paperless / paper
8.HMI (interface): analog screen / touch screen / industrial computer
9.Elektricheskie elements: the Chinese brand quality / Schneider / Siemens

Models and vacuum furnace parameters for grouting



Models and Options	VCQ-334D	VCQ-446D	VCQ-557D	VCQ-669D	VCQ-7711D	VCQ-8812D	VCQ-9915D
working area Dimensions W × H × D (mm)	300 × 300 × 400	400 × 400 × 600	500 × 500 × 700	600 × 600 × 900	700 × 700 × 1100	800 × 800 × 1200	900 × 900 × 1500
Skadki Weight (kg)	75	250	400	600	1000	1200	1500
Heating power (kW)	48	75	90	150	270	360	480
Max. Temperature (℃)	1150	1150	1150	1150	1150	1150	1150
	1350	1350	1350	1350	1350	1350	1350
Temperature uniformity (℃)	± 5	± 5	± 5	± 5	± 5	± 5	± 5
Vacuum (Pa)	4 × 10-1	4 × 10-1	4 × 10-1	4 × 10-1	4 × 10-1	4 × 10-1	4 × 10-1
The rate of pressure rise (Pa / h)	≤0.26	≤0.26	≤0.26	≤0.26	≤0.26	≤0.26	≤0.26
	≤0.65	≤0.65	≤0.65	≤0.65	≤0.65	≤0.65	≤0.65
Wednesday karborizatsii	C2H2 + N2	C2H2 + N2	C2H2 + N2	C2H2 + N2	C2H2 + N2	C2H2 + N2	C2H2 + N2
Wednesday ??? karborizatsii (mbar)	5:20	5:20	5:20	5:20	5:20	5:20	5:20
control Type	Many pulses	Many pulses	Many pulses	Many pulses	Many pulses	Many pulses	Many pulses
Time travel cages (S)	≤15	≤20	≤25	≤30	≤35	≤35	≤40
hardening Wednesday	Oil / Gas	Oil / Gas	Oil / Gas	Oil / Gas	Oil / Gas	Oil / Gas	Oil / Gas
