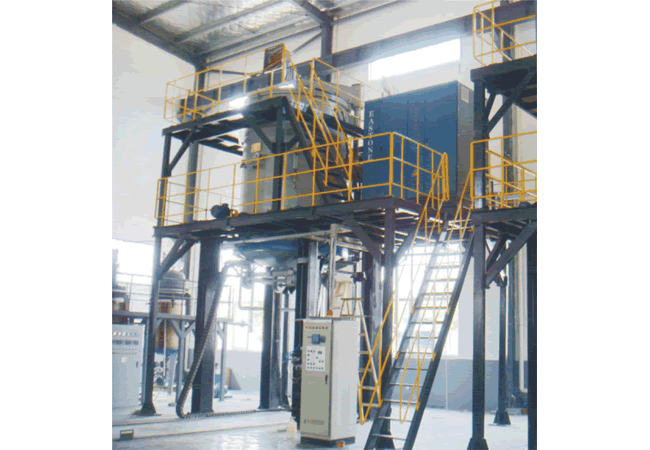

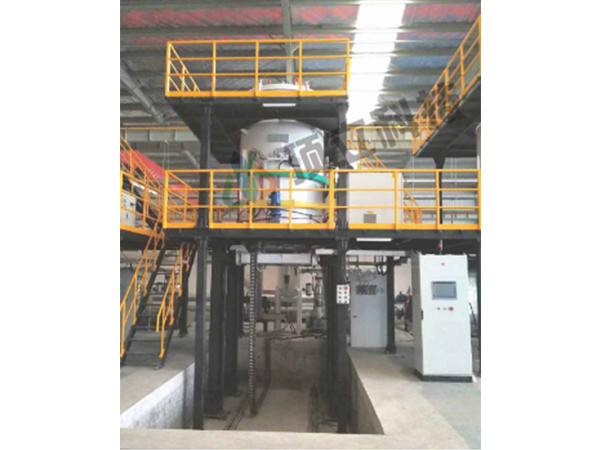

Induction furnace at medium frequencies

appointment


Induction furnaces used for high temperature graphitization of carbon-carbon composite materials, refractory materials, graphite and carbon fiber products.

Technical features


1. With the use of induction heating medium frequency, max. temperature up to 3000 ℃
2.Spetsialnaya temperature measuring equipment infrared beam with high precision temperature control and minimum error.
3. Vacuum induction furnaces have the option of fast external circulation cooling system, reducing the time of each cycle, getting high efficiency.
4. Effective harmonic filters can be configured to minimize the contamination of the grid.

Personal accessories


1.Dveri furnace: spiral lift / hydraulic lift / manual lifting, manual locking / automatic ring seal.
2.Korpus induction furnaces: internal stainless steel / stainless steel fully
3.Kamera furnace: Soft carbon felt / graphite felt soft / hard composite felt
4.Nagrevatel: expanded graphite of high purity, high strength and high density / small sized graphite
5.Vakuumny pump and vacuum: Imported / Chinese brand
6.Chastota power vacuum induction furnaces: IGBT / KGPS
7.HMI (interface): analog screen / touch screen / industrial computer
8.PLC: OMRON / SIEMENS
Temperature 9.Kontroller: SHIMADEN / EUROTHERM
10.Termopara: C type / S type / K type / N Type
11.Pirometr: two color / monochrome, CHINO / Raytek
12.Registrator: paperless / paper; imported / Chinese brand
13.Elektricheskie elements: CHINT / SCHNEIDER / SIEMENS

The models and parameters of induction furnaces



Models and Options	VIG-0305	VIG-0508	VIG-0812	VIG-1015	VIG-1218	VIG-1520
working area size D × H (mm)	Φ300 × 500	Φ500 × 800	Φ800 × 1200	Φ1000 × 1500	Φ1200 × 1800	Φ1500 × 2000
Load (kg)	50	150	500	1000	2000	3000
Max. Temperature (℃)	2600	2600	2600	2600	2600	2600
Temperature uniformity (℃)	± 15	± 15	± 20	± 20	± 25	± 25
Heating power (kW)	80	120	300	450	600	900
Ultimate vacuum (Pa)	20	20	20	20	20	20
The rate of increase of pressure (Pa / h)	0.67	0.67	0.67	0.67	0.67	0.67
These characteristics may vary according to the technological requirements of the customer, they are not the standards for the reception, detailed specifications will be confirmed in the technical proposal or contract.
