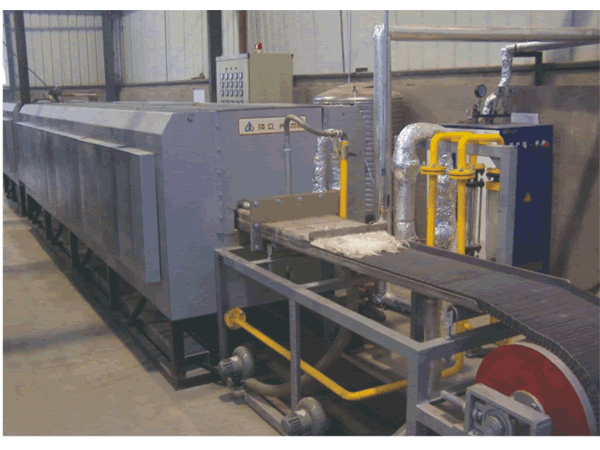

Oven with mesh conveyor steam blackening metal products

Appointment blackening furnace steam


The furnace is designed for steam blackening powder products on the basis of iron Fe, to improve the corrosion resistance of their surfaces, for example: gear rods and the car, motorcycle, or other metal article.

Technical features of the conveyor furnace for steam bluing


1.Chernenie steam surfaces of metal products without pollution, environmentally friendly.
2. Use modular types of heating elements, which is convenient for maintenance and replacement without stopping the furnace;
3. Use the structure of the fiber insulation. Rapid heating and reducing energy consumption.
4.Kryshka furnace - outboard design, convenient for maintenance and replacement of the muffle.
5. Oven blackening steam has a remote control function, diagnostic alarm malfunctions, and software updates.

Personal accessories


1. The body of the furnace: alumino-silicate fiber / ceramic felts
2. The heater belt furnace for steam bluing: 0Cr21Al6Nb; 0Cr27Al7Mo2
3. muffle: stainless steel
4. The material of the mesh conveyor: SUS310S; SUS314; SUS304
5.Pnevmaticheskoe management: a steam generator; the manual / automatic valve, imported / domestic brand
6. Control panel: analog screen / touch screen / industrial computer
7. PLC: OMRON / SIEMENS
8. The furnace temperature controller for blackening steam: SHIMADEN / EUROTHERM
9. Thermocouple: C type / K type / N Type
10. Recorder: a paperless / paper; imported / Chinese brand
11. Electrical components: CHINT / SCHNEIDER / SIEMENS

The models and parameters of the conveyor furnace for steam bluing



options Models	MST-300 / 100-4	MST-460 / 100-5	MST-650 / 100-5
Net conveyor width (mm)	300	460	650
Muffle height (mm)	100	100	100
The number of heating zones	4	5	6
The length of the heating zone	2000+ 4300	2000+ 5000	2000+ 5000
Max. Temperature (℃)	700	700	700
Temperature uniformity (℃)	± 5	± 5	± 5
Heating power (kW)	100	140	200
Working atmosphere	Water steam	Water steam	Water steam
The gas flow rate (m³ / h)	15	thirty	45
The total size of W × H × D (mm)	12500 × 1400 × 1600	135000 × 1500 × 1700	135000 × 1500 × 1700
These data are calculated in accordance with the parameters of blackening the surface of products based on Fe. They may vary according to the technological requirements of the customer, they are not the standards for the reception, detailed specifications will be confirmed in the technical proposal or contract.
