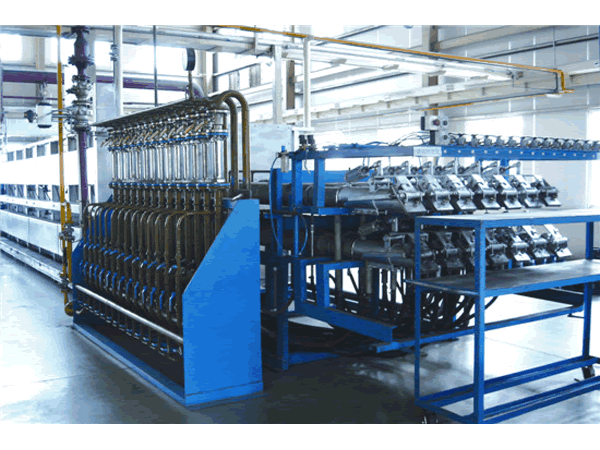

multi-tubular furnace

appointment


Multitube furnace designed for the recovery of metal powders (tungsten, molybdenum, etc.).

Technical features multi-tubular furnace for recovery


1.Nagrevatel MULTI-in oven with a good uniformity and high productivity.
2. Use cylindrical tube heating, less distortion-free loading and unloading.
3. Periodic access for loading and unloading with a good tightness, low cost gas. It allows the hydrogen recirculation.
4.Optsiya systems are fully automatic loading and unloading pusher crucibles, stable product quality, low labor intensity
5. The multi-tubular furnace has a remote control function, diagnostic alarm malfunctions, and software updates.

Personal accessories


1.Korpus furnace: alumino-silicate fiber / alumina ceramic fiber / refractory bricks
2.Nagrevatel multi-tubular furnace for recovery: 0Cr21Al6Nb; 0Cr27Al7Mo2
3.Mufel: SUS304 / SUS310S / RA330 / RA600 / ZG45Cr28Ni48W5Si2
4.Tip pusher: pneumatic / hydraulic / mechanical
5.Zagruzka and unloading: Automatic loading and unloading roller outer loop / manual loading and unloading / auto pusher crucible
6.PLC: OMRON / SIEMENS
7. The multi-tubular furnace temperature controller: SHIMADEN / EUROTHERM
8. Thermocouple: C type / S type / N Type
9.Registrator: paperless / paper; imported / Chinese brand
10.Panel control: analog screen / touch screen / industrial computer
11.Elektricheskie elements: CHINT / SCHNEIDER / SIEMENS

The models and parameters of multi-tubular furnace for recovery



options Models	MT-140-14-12	MT-140-15-12	MT-140-18-12
The inner diameter of the muffle (mm)	140	140	140
The number of furnace tubes	14	15	18
The number of heating zones	12 June	12 June	12 June
The length of the heating furnace body (mm)	8300	8300	8300
Max. Temperature (℃)	1100	1100	1100
Temperature uniformity (℃)	± 5	± 5	± 5
Heating power (kW)	480	580	700
Working atmosphere	Ar / N2 / H2	Ar / N2 / H2	Ar / N2 / H2
The total size of W × H × D (mm)	17500 × 3800 × 2500	17500 × 3800 × 2500	18000 × 3800 × 2500
These data are calculated in accordance with the parameters of tungsten powder recovery. They may vary according to the technological requirements of the customer, they are not the standards for the reception, detailed specifications will be confirmed in the technical proposal or contract.
