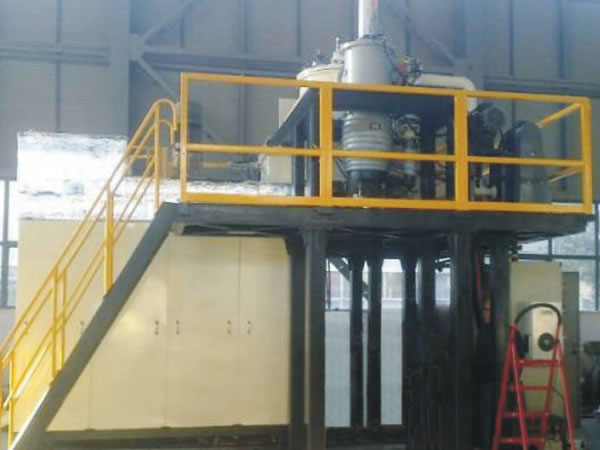

Vertical vacuum furnace for tempering water

appointment


Vacuum furnace for quenching water intended for sintering articles of titanium alloy for the aerospace industry, for example, from the beryllium bronze parts in devices TC4, TC16, on aircraft parts made of elastomeric 3J1,3J21 based alloys Ni, Co, used sensors with high magnetization at airplanes and parts 3J53 constant elasticity alloy, alloys with a certain precision based magnetization Ni, 17-4PH, 410 stainless steel products in the nuclear industry and others.

 Technical features of the vertical furnace, vacuum quenching water


1.Pech is vertical, dual-chamber, opening the lower door is not necessary. Integral type or split type structure according to customer requirements
2. The details of the download type: suspended / console.
3.Modulnaya optimized furnace chamber, with a good temperature uniformity and homogeneity of the cooling.
4.Vremya moving cages vertical Lifting shorter than the horizontal drive.
5. In a vacuum furnace for tempering water uses patented technology - no need to supply another gas to suppress the water vapor, full protection against water vapor heating chamber and vacuum pump unit from contamination.
6.Bolshaya water tank, equipped with a circulating cooling system with good effect water quenching.
7. Has the scalability to increase production efficiency.
8. No contaminants of steam for heating the chamber and the vacuum system.

Personal accessories


1.Vertikalnaya bicameral: Integral type / mobile heating / mobile water tank camera.
2.Kamera vertical furnaces for vacuum quenching water: Molybdenum heaters and fully metal shield for thermal insulation
3.Tip mixing water: mixing paddle / injector / mixing paddle and nozzle
4.Vakuumny pump and vacuum: Imported / Chinese high-quality brand
5.PLC: Siemens / Omron / Mitsubishi
6.Kontroller temperature vacuum furnace for tempering water: Shimaden / Eurotherm / Honeywell
7.Termopara: K type / N type / S type
8.Registrator: paperless / paper
9. HMI (interface): analog screen / touch screen / industrial computer
10. Electrical components: high quality Chinese brand / Schneider / Siemens

Models and vertical furnace parameters for vacuum quenching water



Models and Options	VVWQ-3030D	VVOQ-4040D	VVOQ-5050D	VVOQ-6060D	VVOQ-8060D
working area Dimensions W × H (mm)	Φ300 × 300	Φ400 × 400	Φ500 × 500	Φ600 × 600	Φ800 × 600
Cages Weight (kg)	50	75	120	200	300
Heating power (kW)	35	60	75	90	120
Max. Temperature (℃)	1350	1350	1350	1350	1350
Temperature uniformity (℃)	± 5	± 5	± 5	± 5	± 5
Vacuum (Pa)	4 × 10-3 / 6 × 10-4	4 × 10-3 / 6 × 10-4	4 × 10-3 / 6 × 10-4	4 × 10-3 / 6 × 10-4	4 × 10-3 / 6 × 10-4
Slew Rate davleniyaPa / h	≤0.26	≤0.26	≤0.26	≤0.26	≤0.26
	≤0.65	≤0.65	≤0.65	≤0.65	≤0.65
Time travel cages (S)	≤6	≤6	≤6	≤6	≤6
hardening Wednesday	Pure water	Pure water	Pure water	Pure water	Pure water
