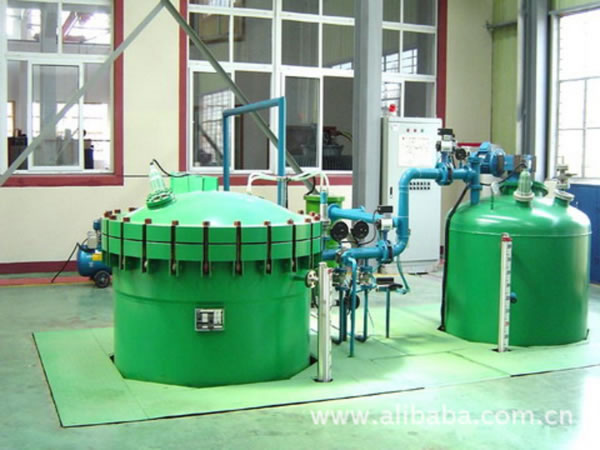

Vacuum furnace for pressure impregnation

Appointment of a vacuum furnace for pressure impregnation


Two functional furnace type: impregnation under vacuum pressure at a low temperature and melt pressure in the vacuum at high temperature. The first type is mainly suitable for the impregnation with bitumen or pitch carbon / carbon materials, silicon carbide materials for the second melt:. Graphite, ceramics, etc. with copper, aluminum and so on.

Technical features of the vacuum injection units


1. Multi-level security and protection system. The main building can withstand changing load 6,000 times.
2. The annular valve hydraulically operated, with mechanical stops.
3. Opening the door hydraulic, manual or automatic.
4. A furnace for impregnation at low temperature has the option, one or two cameras.
5. The vacuum furnace for melt under pressure can be designed with a continuous working cycle to improve efficiency.

Options accessories vacuum furnace pressure impregnation


1. The oven doors: hydraulic lift / auto ring seal.
2. The body of the furnace: all carbon steel / stainless steel fully
3. The chamber furnace: ceramic fiber
4. Heater: Ni-Cr; Fe-Cr-Al-Nb; SiC rod (rod), graphite
5.Pnevmaticheskaya system: volumetric flow meter / mass flow meter, manual / automatic valve, imported / Chinese brand
6.Vakuumny pump and vacuum: Imported / Chinese brand
7.PLC vacuum-injection systems: OMRON / SIEMENS
8. Temperature Controller: SHIMADEN / EUROTHERM
9. Thermocouple: K type / W-Re type / S type / R type
10.HMI (interface): analog screen / touch screen
11.Elektricheskie elements: CHINT / SCHNEIDER / SIEMENS

Model parameters and furnaces for impregnation at low temperature



options Models	VVC-0508	VVC-0812	VVC-1015
working area size D × H (mm)	Φ500 × 800	Φ800 × 1200	Φ1000 × 1500
Max. Temperature (℃)	400	400	400
Heating power (kW)	45	90	150
Max. Pressure (Pa)	9.8	9.8	9.8
Ultimate vacuum (Pa)	thirty	thirty	thirty

 Model parameters for the furnace and melt at high temperatures

Models and Options	VVC-0304	VVC-0508	VVC-0610
working area size D × H (mm)	Φ300 × 400	Φ500 × 800	Φ600 × 1000
(℃) Max. temperature	1250	1250	1250
Heating power (kW)	45	90	135
Max. Pressure (Pa)	9.8	9.8	9.8
Ultimate vacuum (Pa)	1	1	1
