Of Material Powder Nickel alloy base material powder of nickel alloys, nickel powder

The powder material from alloys based on Nickel

Description

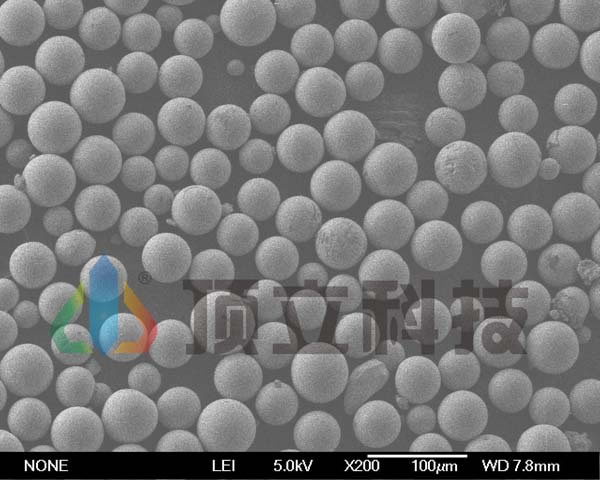

The particulate material based on nickel alloy has fine particles (d50≤20 - 50μm)., Low oxygen content (main fraction 0.01%), excellent sphericity excellent fluidity, etc. The material used in the aerospace industry, chemical industry, food components to create equipment , heat exchangers, the molding process. the nickel powder to otlichaetsyaustoychivostyu okisleiyu supports its Kharkteristika even under difficult environmental conditions.

GH4169 (IN718) high-temperature powder unit:%

Cr	Ni	Co	Mo	Nb	Al	Ti	Fe
16.8 - 20.9	50 - 55	≤1.0	2.8 - 3.3	4.6 - 5.4	0.2 - 0.8	0.65 - 1.15	Bal
B	Mn	Si	P	S	Cu	C	O
≤0.006	≤0.35	≤0.35	≤0.015	≤0.015	≤0.3	≤0.08	≤0.01

particle size (μm)	0 - 15	15 - 45	15 - 53	45 - 105	105 - 150
Flow (sec / 50g)	≤15
density (g / cm3)	4.65	4.67	4.71	4.82	4.89

Lin Plasma atomization
the working principle of the line plasma atomization: metal or an alloy is fed through a special power wire system (material originally in this form), then there is its melting under the influence of the plasma torch (multiple goelkami equipped each melting chamber), the material is then rapidly coo...
