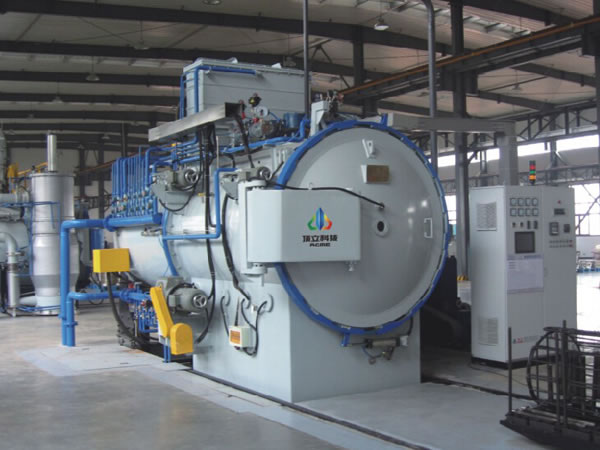

Horizontal two-chamber vacuum furnace for hardening products in the oil and gas-cooled

appointment


Horizontal two-chamber vacuum furnace is designed for heat treatment of products of alloy structural steel, bearing steel, spring steel, steel stamping, high-speed steel and other. It allows the following process steps: tempering of products in the oil in a vacuum condition, cooling the product gas stream, bright high-temperature annealing in vacuum condition products, rental high temperature in vacuum condition and others.

Technical features

1. Vacuum tempering furnace products is a horizontal two-chamber structure, with a compact overall layout, efficiently and ergonomically.
2.Pod furnace design perfect octagonal shape, with a good temperature uniformity.
3.Unikalnaya technology beskeramicheskoy heaters with insulation. The persistence of more than 5 years without fear of reducing the quality of the thermal insulation.
4.Vnutrennyaya truck cages are moved by device type imposed by stretching ??, speed is regulated by frequency in the "slow-fast-slow" in a linear motion, stability, reliability and travel time korotko.
5.Vnutrenny cooling coil with uniform flow and high flow air circulation to get good cooling result.
6. Horizontal two-chamber vacuum furnace equipped with a large capacity for oil, hot oil is cooled with high speed external circulating heat exchanger by external circuit pump.
7.Dva cooling type, paddle mixing oil and spray nozzles used for various sizes of parts, minimizing their deformirovaniya.
8.Bolshaya cage and high efficiency compared with other similar ovens.

Personal accessories


1.Teploizolyatsionnaya valve between the two chambers: a mechanical drive / pneumatic privod
2.B stirring oil quenching: mixing paddle / injector / mixing paddle and nozzle
2.Kamera vacuum furnaces for hardening products: graphite heaters and reflective screens graphite felt composite heat insulation.
3.Iz heaters nikelhromovyh alloys and stainless steel reflective screens for insulation.
4. From molybdenum heaters and reflective metal screens for insulation.
5. System of cooling gas: internal heat exchanger / external heat exchanger / no
6.Vakuumny pump and vacuum: Imported / Chinese high-quality brand
7.Vakuum: high vacuum level / average vakuuma
8.PLC: Siemens / Omron / Mitsubishi
9.Kontroller horizontal dual-chamber vacuum furnace temperature: Shimaden / Eurotherm / Honeywell
10.Termopara: K type / N type / S type
11.Registrator: paperless / paper
12.HMI (interface): analog screen / touch screen / industrial computer
13.Elektricheskie elements: high quality Chinese brand / Schneider / Siemens

Models and parameters of the vacuum furnace for tempering products



Models and Options	HVOQ-334D	HVOQ-446D	HVOQ-557D	HVOQ-669D	HVOQ-7711D	HVOQ-8812D	HVOQ-9915D
working area Dimensions W × H × D (mm)	300 × 300 × 400	400 × 400 × 600	500 × 500 × 700	600 × 600 × 900	700 × 700 × 1100	800 × 800 × 1200	900 × 900 × 1500
Massa treated cages	75	250	400	600	1000	1200	1500
Heating power (kW)	48	75	90	150	270	360	480
Max. Temperature (℃)	1150	1150	1150	1150	1150	1150	1150
	1350	1350	1350	1350	1350	1350	1350
Temperature uniformity (℃)	± 5	± 5	± 5	± 5	± 5	± 5	± 5
The vacuum level (Pa)	4 × 10-1	4 × 10-1	4 × 10-1	4 × 10-1	4 × 10-1	4 × 10-1	4 × 10-1
	4 × 10-3 / 6 × 10-4	4 × 10-3 / 6 × 10-4	4 × 10-3 / 6 × 10-4	4 × 10-3 / 6 × 10-4	4 × 10-3 / 6 × 10-4	4 × 10-3 / 6 × 10-4	4 × 10-3 / 6 × 10-4
The rate of pressure rise (Pa / h)	≤0.26	≤0.26	≤0.26	≤0.26	≤0.26	≤0.26	≤0.26
	≤0.65	≤0.65	≤0.65	≤0.65	≤0.65	≤0.65	≤0.65
Time travel cages (S)	≤12	≤15	≤20	≤25	≤35	≤35	≤40
Oil Tank Capacity (L)	800	2000	3500	5500	9500	11000	14000
(99.995%) Cooling gas	N2 / Ar	N2 / Ar	N2 / Ar	N2 / Ar	N2 / Ar	N2 / Ar	N2 / Ar
The pressure of the cooling gas (bar)	2	2	2	2	2	2	2
