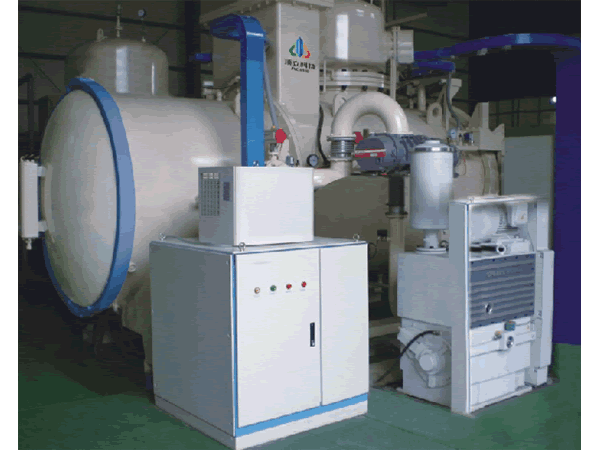

Horizontal two-chamber vacuum furnace with high pressure gas quenching for

appointment


Two-chamber vacuum furnace for quenching gas is to quench the gaseous products of tool steel, stamped steel, high speed steel, high-strength steel, and so on. A separate heating chamber and a separate quenching chamber, with low power consumption and good cooling efficiency.

Technical features of the horizontal two-chamber vacuum furnace


1. The furnace is a horizontal, two-chamber, with a horizontal loading cages, opening the oven door versions on request.
2. Separate the gas quenching chamber, with fast heat exchange rate.
3.Vnutrennyaya truck cages are moved by device type imposed by stretching ??, stability, reliability and travel time short.
4. Depending on the requirements for the processing of parts, the axial flow fan with a large capacity, high power, or a centrifugal fan.

Personal accessories


1.Termopara: K type / N type / S type
2.Registrator two-chamber vacuum furnaces for gas quenching: paperless / paper
3.HMI (interface): analog screen / touch screen / industrial computer
4.Elektricheskie elements: the Chinese brand quality / Schneider / Siemens
5. Opening the oven door: vertical Wake up / Wake up spinning
6. Type of gas quenching: cooling the gas flow goes vertically / cooling gas flow goes from left and right
7.Kamera horizontal dual-chamber vacuum furnace: from graphite heaters and reflective screens graphite composite heat insulation felt / molybdenum heaters and metal reflective screens for insulation
8.Vakuumny pump and vacuum: Imported / Chinese brand quality
9. Vacuum: a high level of vacuum / medium vacuum level
10.PLC: Siemens / Omron / Mitsubishi
11.Kontroller temperature: Shimaden / Eurotherm / Honeywell

The models and parameters of a two-chamber vacuum furnaces for gas quenching



Models and Options	HVGQ -334D	HVGQ -446D	HVGQ -557D	HVGQ -669D	HVGQ -7711D	HVGQ -8812D	HVGQ -9915D
working area Dimensions W × H × D (mm)	300 × 300 × 400	400 × 400 × 600	500 × 500 × 700	600 × 600 × 900	700 × 700 × 1100	800 × 800 × 1200	900 × 900 × 1500
Cages Weight (kg)	75	250	400	600	1000	1200	1500
Heating power (kW)	48	75	90	150	270	360	480
Max. Temperature (℃)	1150	1150	1150	1150	1150	1150	1150
	1350	1350	1350	1350	1350	1350	1350
Temperature uniformity (℃)	± 5	± 5	± 5	± 5	± 5	± 5	± 5
Vacuum (Pa)	4 × 10-1	4 × 10-1	4 × 10-1	4 × 10-1	4 × 10-1	4 × 10-1	4 × 10-1
	4 × 10-3 / 6 × 10-4	4 × 10-3 / 6 × 10-4	4 × 10-3 / 6 × 10-4	4 × 10-3 / 6 × 10-4	4 × 10-3 / 6 × 10-4	4 × 10-3 / 6 × 10-4	4 × 10-3 / 6 × 10-4
The rate of pressure rise (Pa / h)	≤0.26	≤0.26	≤0.26	≤0.26	≤0.26	≤0.26	≤0.26
	≤0.65	≤0.65	≤0.65	≤0.65	≤0.65	≤0.65	≤0.65
Time travel cages (S)	≤12	≤15	≤20	≤25	≤30	≤30	≤35
Quenching gas pressure (bar)	6/10/15/20	6/10/15/20	6/10/15/20	6/10/15/20	6/10/15/20	6/10/15/20	6/10/15/20
Cooling gaz99.995%	N2 / Ar / He	N2 / Ar / He	N2 / Ar / He	N2 / Ar / He	N2 / Ar / He	N2 / Ar / He	N2 / Ar / He
