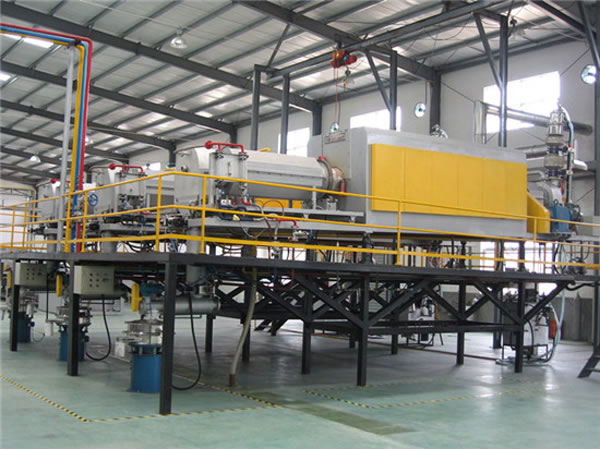

Rotary-rotary kiln is intended for calcining metal salts and reducing metal oxides. For example, calcination APT, blue tungsten recovery.
Technical features of the drum rotary kiln
1. Rotating furnace tube, with good flowability of powders. 2. Used ACME patented technology for loading and unloading system, with good integrity, low cost gas. It allows the hydrogen recirculation. 3. It allows for fully automatic loading and unloading, stable quality products, low labor intensity. 4. Rotary rotary kiln has a remote control function, diagnostic alarm malfunctions, and software updates.
Personal accessories
1.Korpus furnace: alumino-silicate fiber / alumina ceramic fiber 2.Nagrevatel drum rotary kiln: 0Cr21Al6Nb; 0Cr27Al7Mo2 3.Material tube furnace: SUS304 / SUS310S / RA330 / RA600 4. Seal Type: filling sealing / graphite + metal seals 5.Tip download: Vacuum automatic absorption / vibration feed / manual loading 6. Control panel: analog screen / touch screen / industrial computer 7. PLC rotary rotary kiln: OMRON / SIEMENS 8. Temperature Controller: SHIMADEN / EUROTHERM 9. Thermocouple: C type / S type / N Type 10. Recorder: a paperless / paper / imported / Chinese brand 11. Electrical components: CHINT / SCHNEIDER / SIEMENS
The models and parameters of the drum rotary kiln
options Models
RF-400-3
RF-600-4
RF-800-6
The diameter of the furnace tube (mm)
400
600
800
The number of heating zones
4
5
6
The length of the heating furnace body
5600
6500
8000
Max. Temperature (℃)
1050
1050
1050
Temperature uniformity (℃)
± 5
± 5
± 5
Heating power (kW)
140
250
360
Working atmosphere
Ar / N2 / H2 / NH3
Ar / N2 / H2 / NH3
Ar / N2 / H2 / NH3
The total size of W × H × D (mm)
12000 × 4000 × 4000
14000 × 5000 × 4500
16500 × 5500 × 4500
These data are calculated in accordance with the parameters of tungsten powder recovery. They may vary according to the technological requirements of the customer, they are not the standards for the reception, detailed specifications will be confirmed in the technical proposal or contract.
