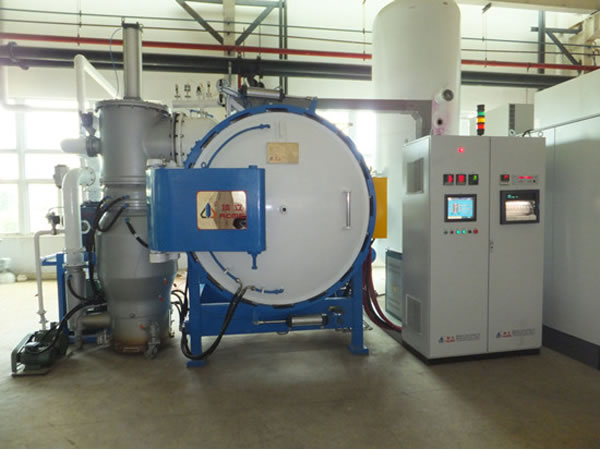

Vacuum sintering furnace heating chamber in the metal

appointment


The vacuum sintering furnace in a metal heating chamber intended for sintering articles of titanium alloys, nickel based alloys, tungsten alloys, high specific gravities, molybdenum alloy, high temperature alloys and hard alloys. It enables to perform the following operations: vacuum sintering, pressure sintering with partial sintering at low pressure.

Technical features


1. Completely metal heating chamber in the furnace for sintering materials sensitive to atmospheric carbon.
2. The special chamber design and ideal location of heaters to get a good temperature uniformity.
3. The vacuum furnace to sinter the metal product is a function of slow evacuation, vacuum sintering, pressure sintering at low sintering under partial pressure.
4.Sensornoe screen control, PLC centralized control, simple operation, high reliability
5. The vacuum furnace to sinter the metal in the heating chamber has an alarm function with pressure overload and overheated in the furnace, the mechanical protection of the automatic pressure lock function, and other functions, high security
6.Imeet remote control functions, diagnostics and fault alarm software update.

Personal accessories


1. The oven doors: manual locking / automatic ring seal.
2. The body of the vacuum furnace to sinter metal products: stainless steel interior / full stainless steel
3. The oven chamber: Mo and La alloy / W + Mo Alloy Alloy + Stainless Steel
4. Heater: Mo and La alloy / W alloy
5.Pnevmaticheskoe control: volume flow meter / mass flow meter, manual / automatic valve, imported / Chinese brand
6. The vacuum pump and vacuum: Imported / Chinese brand
7. HMI (interface): analog screen / touch screen / industrial computer
8. PLC vacuum sintering furnace in a metal heating chamber: OMRON / SIEMENS
9. The temperature controller: SHIMADEN / EUROTHERM
10. Thermocouple: C type (with a cover made of tungsten / molybdenum / ceramics)
11. Recorder: a paperless / paper / imported / Chinese brand
12. Electrical components: CHINT / SCHNEIDER / SIEMENS

Models and vacuum furnace parameters for the sintering of metal products



options Models	MHS-020 203	MHS-030 306	MHS-040 408	MHS-050 513
The size of the working area W × H × D (mm)	200 × 200 × 300	300 × 300 × 600	400 × 400 × 800	500 × 500 × 1300
loading weight (excluding volume) kg	25	100	200	400
Max. Temperature (℃)	1550	1550	1550	1550
Temperature uniformity (℃)	± 3	± 3	± 5	± 5
Heating power (kW)	50	85	105	240
Ultimate vacuum (Pa)	4 × 10-3	4 × 10-3	4 × 10-3	4 × 10-3
The rate of pressure rise (Pa / h)	0.67	0.67	0.67	0.67
Working atmosphere	Ar / N2 / H2	Ar / N2 / H2	Ar / N2 / H2	Ar / N2 / H2
These figures may vary according to the technological requirements of the customer. They are not standards for the reception, detailed specifications will be confirmed in the technical proposal or contract.
