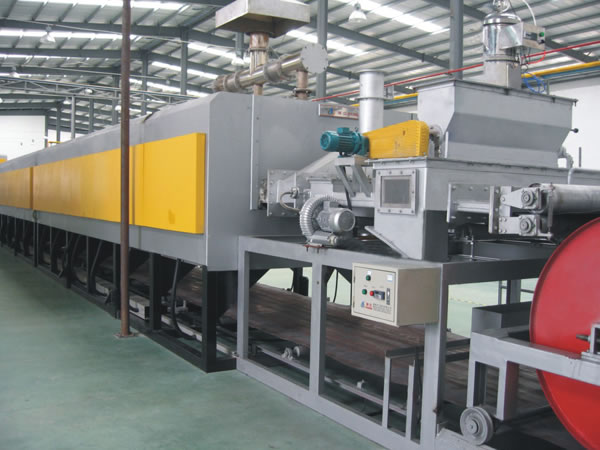

Conveyor furnace for recovery of metal powders

Appointment of conveyor furnaces for the recovery of metal powders


The furnace is designed to recover metallic powders Fe, Cu, Co, Ni, W, Mo, and calcining the cobalt formate, APT and other metal salts.

Technical features of the conveyor furnace to recover powders


1.Nepreryvnoe production, low power consumption and higher performance.
2.Bez crucibles without dead zones, with good temperature uniformity at the output of a fully restored high-quality products
3.Polnostyu automatic loading and unloading, stable product quality, low labor intensity
4. Option of input gas discharge system increases the gas utilization and reduce gas costs.
5. The conveyor oven for recovery of metal powders has a remote control function, diagnostic alarm malfunctions, and software updates.

Personal accessories


1.Korpus furnace: alumino-silicate fiber / aluminum oxide ceramic fiber / refractory bricks
2. Heater: 0Cr21Al6Nb; 0Cr27Al7Mo2
3. muffle: SUS304 / SUS310S / SiC + Si3N4
4. Seal type loading and unloading: Gas + fire curtain / waterproof
5. HMI (interface) of the conveyor furnace to recover powders: analog screen / touch screen / industrial computer
6. PLC: OMRON / SIEMENS
7. Temperature Controller: SHIMADEN / EUROTHERM
8. Thermocouple: C type / K type / N type (with a cover made of tungsten / molybdenum / ceramics)
9. Recorder: a paperless / paper; imported / Chinese brand
10. Electrical components: CHINT / SCHNEIDER / SIEMENS

The models and parameters of conveyor furnaces for the recovery of metal powders



options Models	SBF-610 / 80-4	SBF-1220 / 80-6	SBF-1500 / 100-10	SBF-2000 / 100-14
The width of the steel conveyor (mm)	610	1220	1500	2000
Muffle height (mm)	80	80	100	100
The number of heating zones	5	6	10	14
The length of the heating furnace body (mm)	6000	10000	17000	21000
Max. Temperature (℃)	980	980	980	980
Temperature uniformity (℃)	± 5	± 5	± 5	± 5
Heating power (kW)	200	450	900	1300
Working atmosphere	Ar / N2 / H2	Ar / N2 / H2	Ar / N2 / H2	Ar / N2 / H2
The total size of W × H × D (mm)	21000 × 1900 × 2100	30000 × 2800 × 2600	45000 × 3400 × 2800	55000 × 4000 × 2800
These data are calculated in accordance with the parameters of the powder recovery of Fe and may vary according to the technological requirements of the customer. They are not standards for the reception, detailed specifications will be confirmed in the technical proposal or contract.
